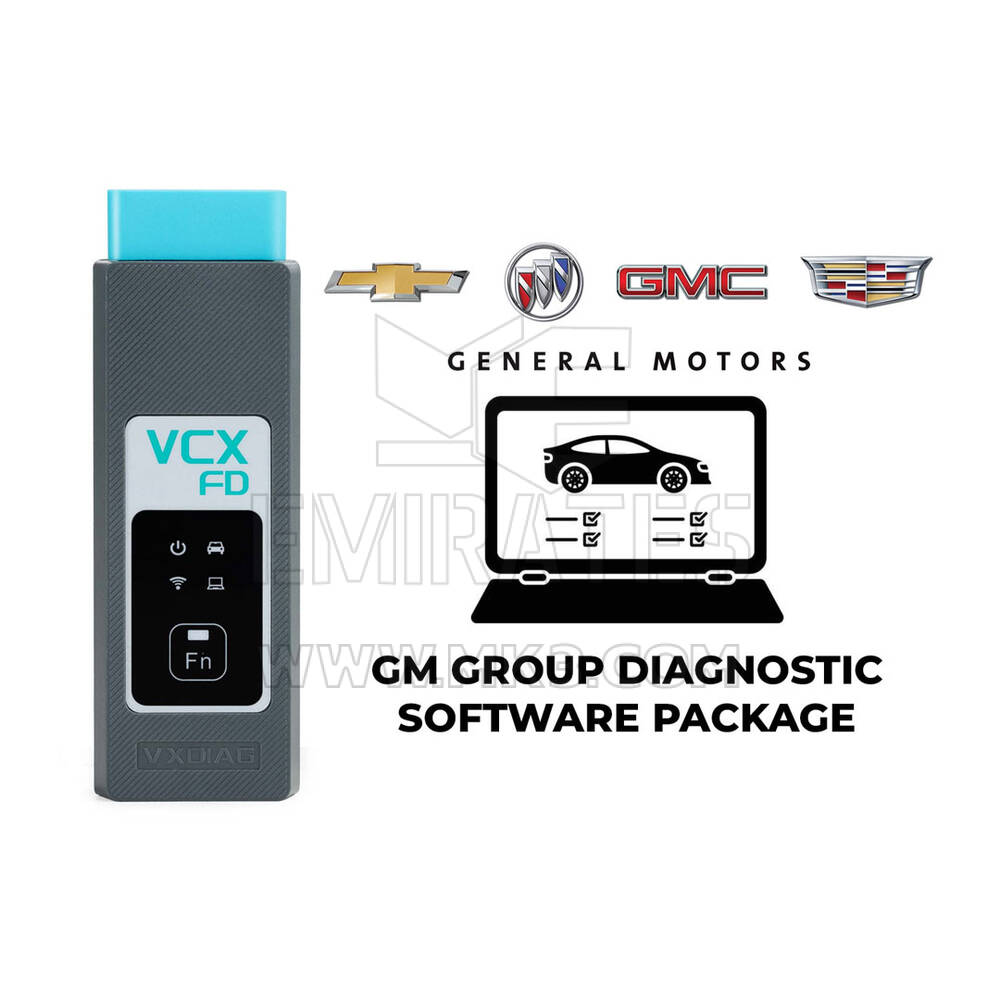

GM Group Diagnostic Software Package and ALLScanner VCX FD This is software only, and does not include technical support for programming/coding/online (paid service)...etc MKON425
GM Group Diagnostic Software Package and ALLScanner VCX FD
GM Group Diagnostic Software Package and ALLScanner VCX FD
GM Group Diagnostic Software Package and ALLScanner VCX FD | MK3 -| thumbnail
GM Group Diagnostic Software Package and ALLScanner VCX FD for GM / FORD / MAZDA CAN FD Diagnostic Tool | Emirates Keys -| thumbnail

GM Group Diagnostic Software Package and ALLScanner VCX FD

This is software only, and does not include technical support for programming/coding/online (paid service)...etc

Write Review
€582.00
Add to Wishlist
Product Code: MKON425
Categories Online Services
Manufacturer ALLScanner
In StockIn Stock
Product Specifications
Manufacturer ALLScanner
Online Service Diagnostic Software

GM Group Diagnostic Software Package and ALLScanner VCX FD

GM Group Diagnostic Software Package & ALLScanner VCX FD Product Description:

GM Group Diagnostic Software Package and ALLScanner VCX FD for GM / FORD / MAZDA CAN FD Diagnostic Tool

Online Services with Product Number: MKON425

Computer configuration requirements
Processor: Intel Core i3, i5, i7 4th
GenSystem Memory (RAM) : 4GB
Hard Disk Drive: 150GB free space
Operating System: Window 7/8/10

GM software vehicle list support
Here are the car models that part two of this software supports:

Daewoo: Lacetti, Matiz, Alpheon, Gentra
Buick: Allure, Cascada, Envision, Encore, Enclave, Lacrosse, Regal, Verano.
Cadillac: ATS, CTS, CT6, ELR, ESCALADE, ESCALADE ESV, SRX, XT5, XTS
Chevrolet: Aveo, Beat, Bolt, Captiva, Camaro, Caprice, Cavalier, Cheyenne, Cobalt, City Express, Coloradaso, Cor, Essentia, Equinox, Enjoy, Express, Impala, Labo, Lacetti, Lumina, Malibu, Matiz, Max, Move , N300, Nexia, Onix, Optra, Orlando, Prisma, Spin, S10, Sonic, Sail, Spark, Spark Ev, Silverado, Spin, Ss, Suburban, Tavera, Volt, Tracker, Trailblazer, Trax, Tahoe, Traverse, Work
GMC: Acadia, Canion, Savana, Sierra, Địa hình, Yukon, Yukon Xl
Holden: Astra Sedan J, Barina, Barina Spark, Cruze, Captiva, Captiva 5, Captiva 7, Caprice, Colorado 7, Commodore, Cascada, Colorado, Equinox, Insignia, Malibu, Spark, Trax, Trailblazer, Volt
Alpheon – Alpheon

2 Software
Tech2win And GDS2

Tech2win and GDS2 software are two software that supports diagnostics and programming for GM vehicles. In addition, they have many other functions to help technicians during vehicle repair.

Tech2win: Read and clear fault codes, with this function the software will display each error code and you can clear the errors directly on the software…
GDS2 software: Read VIN, ECU part number, and software number; Record, store, and playback stored data; Control and monitor Output Control functions.


Tech2win software
Description of the software
Software name: Tech2win
Version: 2.3.70
Capacity: 2GB
Languages: English, Czech, Bulgarian, Danish, German, Greek, Spanish, Finnish, French, Croatian, Hungarian, Indonesian, Italian, Japanese, Korean, Dutch, Norwergian, Polish, Romanian, Russian, Slovenian, Swedish, Turkish, Thai, Chinese

The function of the software
Tech2win software currently includes 4 main functions:

Read and clear fault codes, with this function the software will display each error code and you can clear the errors directly on the software
Read the vehicle’s parameters. For example, parameters of the engine, transmission, status of the control software on the vehicle
Activate the engine actuator
Perform drivetrain, chassis, and bodywork tests.


GDS 2 software
Description of the software
GDSII software (Global Diagnostic System 2) is designed for use by technicians to diagnose and repair systems automotive electronics on some models manufactured in 2010 – 2013 and all GM models from 2014 to the present.

Languages: Indonesian, Czechoslovak, Danish, German, English, Spanish, American Spanish Latin, French, Canadian French, Croatian, Italian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Brazilian Portuguese, Romanian, Slovenian, Finnish, Swedish, Turkish, Russian, Chinese, Japanese, Korean…

The function of the software
Read VIN, ECU part number, and software number.
Record, store, and playback stored data.
Control and monitor Output Control functions.
Configure and reset functions.
Record or display history of previous vehicle diagnostic sessions.

GM Group Diagnostic Software Package | Emirates Keys

GM Group Diagnostic Software Package | Emirates Keys



Requiled Products

ALLScanner VCX-DoIP  (Need GM License)

ALLScanner VCX SE  (Need GM License)

ALLScanner VCX NANO for Volkswagen USB / WIFI



ALLScanner VCX FD for GM / FORD / MAZDA CAN FD Diagnostic Tool WIFI Version

Product Description:

New ALLScanner VCX FD for GM / FORD / MAZDA CAN FD Diagnostic Tool WIFI Version

Diagnostic Tools From ALLScanner with Product Number: MK23746
This Weight Product: 280g

Specs:

Manufacturer: ALLScanner
Condition: New

ALLScanner VCX-FD is a smart vehicle diagnostic interface designed by ALLSCANNER VXDIAG, which represents the diagnostic technology of the next generation. The product uses a newly upgraded dual-core high-speed processor to fully support multi-channel CAN-FD / DOIP and traditional diagnostic protocols, and compatible with more original diagnostic software.

VCX-FD also supports local and super remote dual-mode diagnosis to provide users with excellent diagnosis experience.

Supported Software:
GM GDS2 V2023.10.19 Tech2WIN 16.02.24
Ford IDS V130
MAZDA IDS V131

Advantages of VCX-FD Hardware:

ALLScanner VCX-FD is Extreme Performance Vehicle Diagnostic Interface

1. Dual -core architecture coordinated work, more communication performance

The 550MHz ARM protocol processor implements CAN-FD and all traditional vehicle BUS protocols.
The 560MHz MIPS network processor realizes the DOIP super diagnostic gateway.
Dual -core processors communicate through the Ethernet, high bandwidth and low latency.
The diagnostic communication speed has been several times more than the previous generation of products.

2. Dual operating system, the software is more stable

The RTOS real -time operating system guarantees the vehicle bus protocol multi -task and the communication.
OpenWRT network operating system flexibly connects a variety of network interfaces and vehicles.

3. Support more comprehensive vehicle BUS protocol

Integrate OBD intelligent protocol multi -router chips, all pins can intelligently switch any protocol.
Support 3-channel CAN-FD multi-channel complication, up to 5M BPS high-speed communication.
Support ISO-13400 standard dual-road DOIP interface Option 1 and Option 2.

4. Flexible and easy -to -use connection method

The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
Built -in wireless route mode, diagnostic computers can wirelessly connect devices.
Support the wireless workstation mode, the device can access the wireless LAN, and any computer can connect the device.
Support the vehicle DOIP Ethernet into WLAN to achieve wireless DOIP diagnosis.

5.  Brand New Design

Adopt an integrated design of integrated OBD-II interface, which is convenient to plug and play.
The reinforced Type-C interface can prevent shaking and falling off, and the connection is more reliable.


ALLScanner VCX-FD is More Powerful Vehicle Diagnostic Equipment

1. More comprehensive original vehicle diagnosis

The original diagnostic model brands that VCX-FD are now adapted to have 15 species.
After the hardware update, it fully supports new models and new original diagnostic software based on CAN-FD and DOIP.
Various advanced diagnosis and programming functions have reached the original level, and the speed even exceeds the original equipment.
Support one -click installation, uninstall and upgrade the original factory support driver, easy to use.

2. Upgraded international standard API interface

SAE-J2534-1/2 PASSTHRU V04.04 & V05.00
ISO-22900 D-PDU API for MVCI
RP-1210A/B/C API for VDA

3. Support J2534 Original Online ECU Programming (Needs original online account)

ECU software upgrade and calibration.
ECU replacement and programming.


ALLScanner VXDIAG VCX FD Parameters:

Hardware Configuration:


Items Description
Network processor 32bit 560MHz MIPS
32MB FLASH
128MB DDR
Protocol processor 32bit 550MHz ARM
1MB FLASH
Diagnostic interface
(vehicle)		 SAE-J1962 Standard OBD-II diagnostic interface
DoIP interface
(vehicle)		 ISO-13400-4 Option1/2 Ethernet
Wired interface (PC) USB TYPE-C
Network interface (PC) USB Type-C to RJ-45 Ethernet
Wireless interface (PC) Wlan 802.11 B/G/N wireless network
Button Fn Reset
Indicator light 5 LEDs: power, wireless, communication, vehicles and remote
Powered by Vehicle power supply: DC 9V-36V (compatible 12V and 24V)
Power consumption 2W
Dimension L x W x H = 140 x 50 x 25 (mm)
Weight Equipment weight: 0.3kg
Product +toolbox +packaging weight: 0.8kg
Shell Reinforced plastic shell
Operating temperature -20～+70 °C
Storage temperature -40～+85 °C
Standard certification EU CE and the US FCC



Support BUS Protocol

ISO-15765 CAN / CANFD VAG TP16 CAN
ISO-13400 DoIP Option1/2 VAG KW81 (SAE J2818)
ISO-9141 K-Line SAE-J2610 SCI (Chrysler)
ISO-14230 K-Line SAE-J1567 CCD BUS (Chrysler)
ISO-17987 LIN BUS SAE-J2740 GM ALDL
SAE-J1850-VPW (GM Class2) SAE-J2809 HONDA DIAG-H
SAE-J1850-PWM (FORD SCP) NISSAN DDL UART with CLOCK
ISO-11898-2 DWCAN BMW DS2
ISO-11898-3 DWFTCAN FORD UBP
SAE-J2411 SWCAN (GMLAN) BENZ KWFB
VAG TP20 CAN (SAE-J2819) BENZ MB-ISO


OBD-II pin BUS Protocol Coverage


PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
POWER       GND GND                     BAT
DoIP-1     RX+         ACT     RX- TX+ TX-
DoIP-2 RX+             ACT RX-     TX+ TX-
CANFD1           H               L
CANFD2     H               L
CANFD3 H/L H/L H/L     H/L H/L H/L H/L H/L H/L H/L H/L H/L H/L
SWCAN X X X     X X X X X X X X X X
PWM   H               L
VPW   X
J1708                       H L
K-LINE X X X     X X X X X X X X X X
UART X X X     X X X X X X X X X X
ADC X X X     X X X X X X X X X X
IO X X X     X X X X X X X X X X

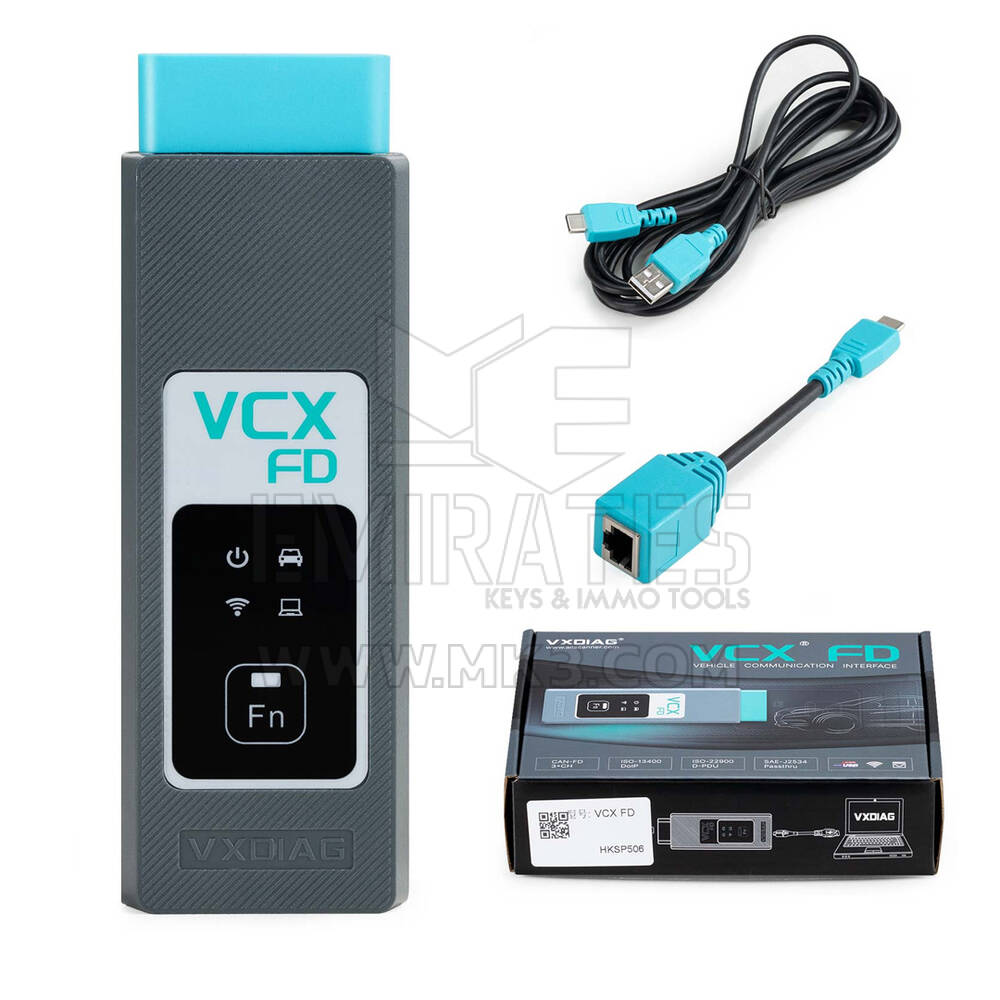

Package List:

1pc x VCX-FD Interface
1pc x Type-C USB Cable
1pc x RJ45 Lan Converter
