Zenith Z7 Lite Device Diagnostic Scan Tool

Zenith Z7 Lite Device Diagnostic Scan Tool Description:

New Zenith Z7 Lite Device Diagnostic Scan Tool Legacy of Excellence with Powerful Performance and Sleek Design

Key Programming Tools Diagnostic Tools From Zenith with Product Number: MK24022

Zenith Z7 Device Diagnostic Scan Tool Specification Configuration

Zenith Z7 Device Diagnostic Scan Tool Coverage List

Zenith Z7 Device Diagnostic Scan Tool Specs:

Category	Specifications
CPU	Octa Core Processor 2.2 GHz
Operating System	Android 11
System Memory	4G / Internal 64G **
External Memory	Micro SD Card Slot Supported (up to 256GB)
LCD	10.1 inch FHD (1920 x 1200)

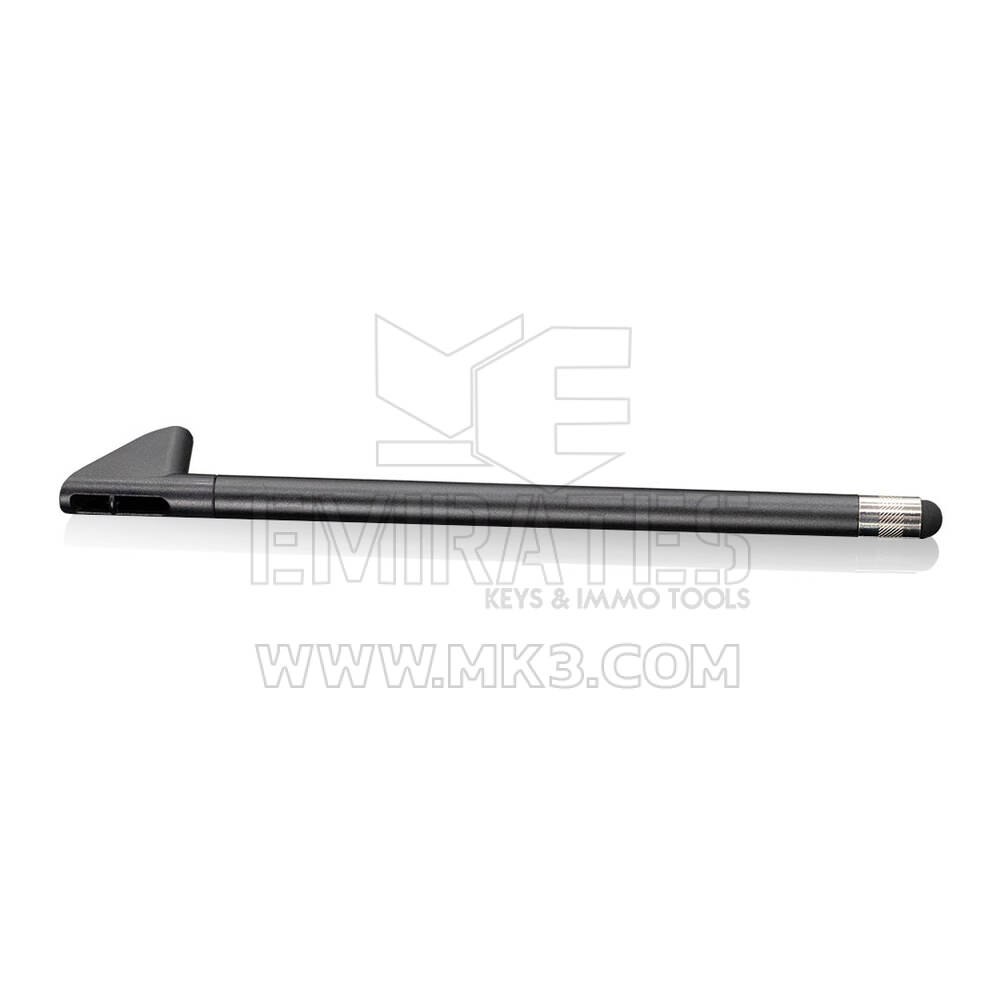

Input Devices	Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)

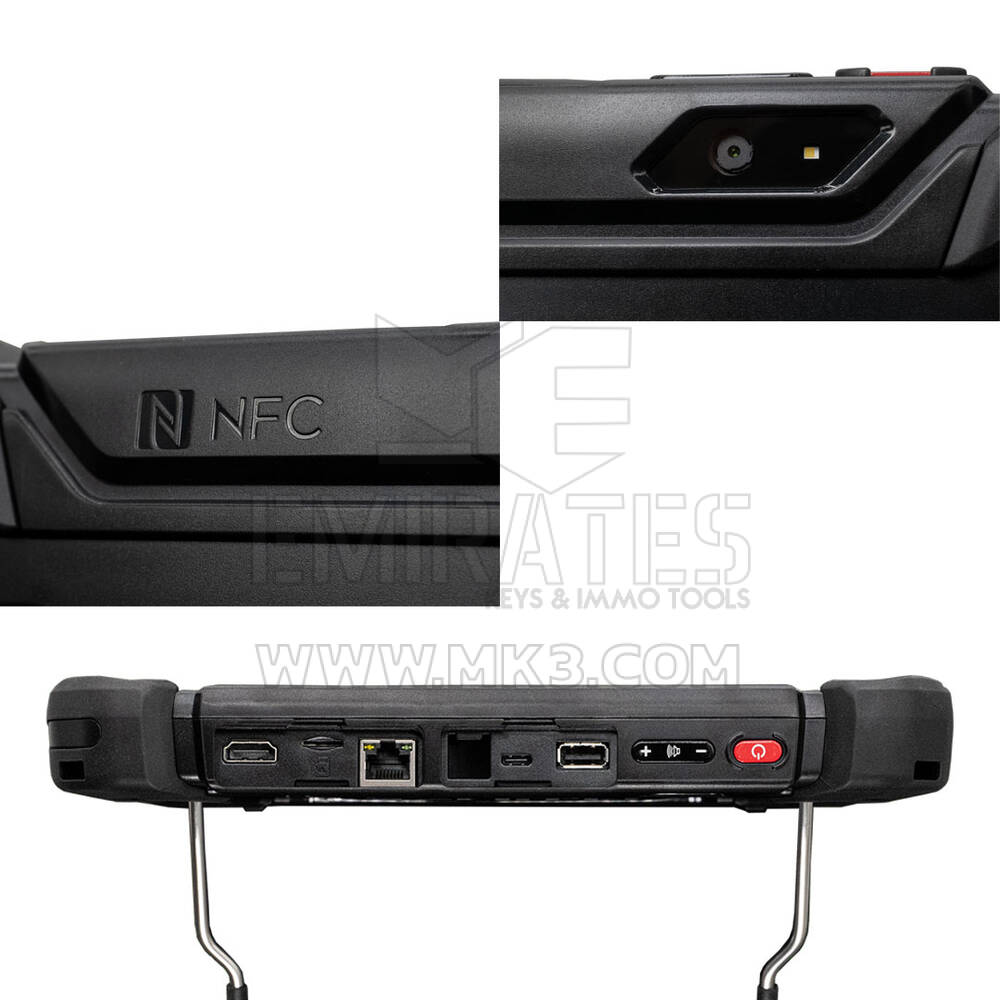

Camera	8 megapixel auto-focus with LED flash
Sound	Loud Speaker 1 microphone
Rechargable Battery	Li-ion 3.85V, 5800mAh
Operating Voltage	Main Unit(DC5V)
Sensors	Ambient Light, Gyroscope, Accelerometer

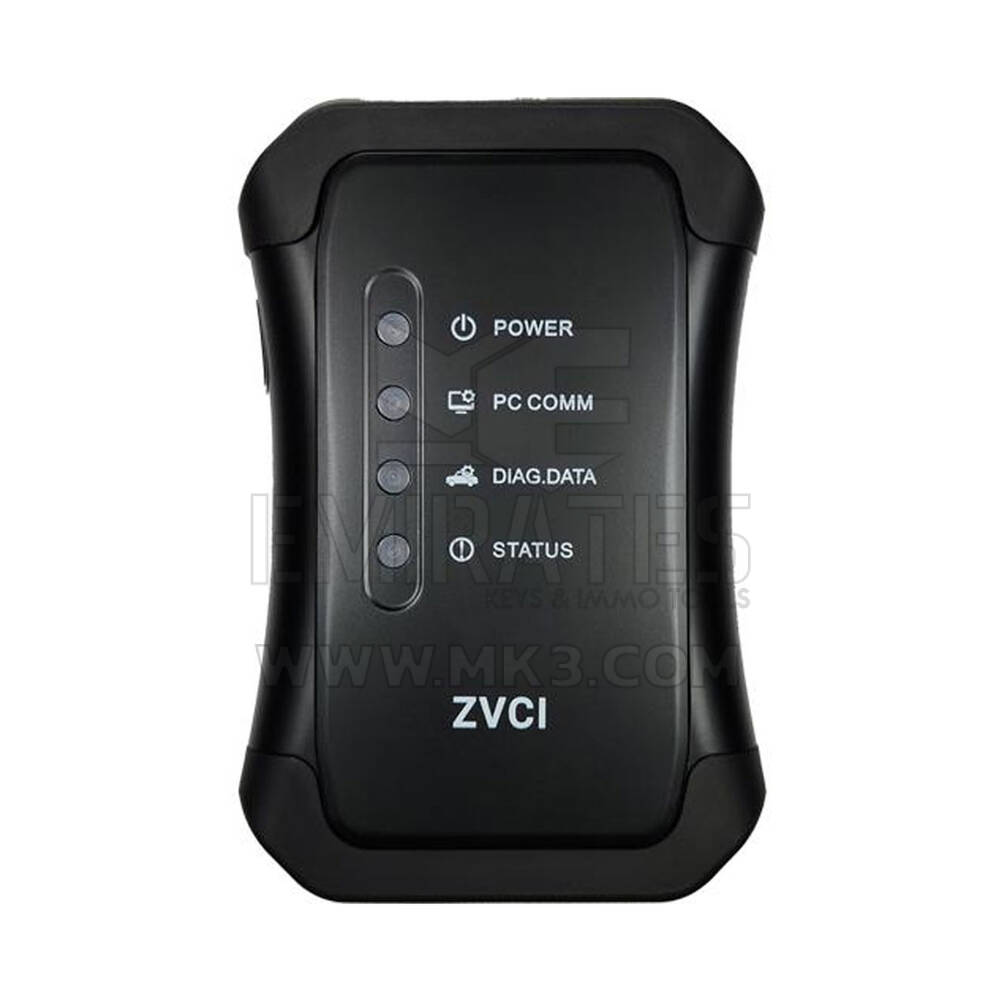

Dimension	About 275 x 187 x 36mm(Terminal) About 130 x 89 x 32mm(VCI)
External Port	USB-B Type(Normal Type)
Network	RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC

Supported Communication Protocols

CAN (High speed, Low speed, Single)

ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000

SAE-J1708, SAE-J1587

J1850(PWM/VPW)

Melco Pull-Down

Ultra Fast System Search

Zenith offers ultra fast and auto system scan function that detects the VIN, model year, model name, engine type, and other necessary information that are retrieved.

Topology Scan

Zenith also offers ultra fast Topology scan function that scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each detected system.

Service Function

Time is money! Zenith offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu system.

FCA SGW Ready

Zenith offers Security Gateway access on the latest Fiat, Chrysler models via AutoAuth.

24V Trucks

Zenith supports bi-directional communications for Asian light duty to medium duty trucks with 24V system.

Full Text Description

No more acronyms and cutting of significant texts. Zenith offers the long-text DTC description in full screen, so you get all the information you need. Zenith also allows users to view bigger texts by zooming in and out of DTC description with two fingers.

Search DTC

No need to going back and forth to search the DTC on the web. Simply hit the magnifying button next to the description!

Live Data

We understand that sensor data is important for professionals. Zenith offers intuitively designed and extremely fast Data Analysis where user can view/compare multiple live data with freedom of choice. Not only displaying multiple data in one screen, but Zenith also allows users to search and select desired items.

Actuation Test

Zenith offers not just simple actuation test function. We go next step to combine live data and graphing in actuation test, so that user can check the performance of the testing component live!

Pre & Post Diagnostic Report

Zenith offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only user can save the reports as PDF file, also with the help of its robust network connectivity, user can print the report directly with a blue-tooth printer or send them to desired E-mail address.

Battery Management System

EV, HEV vehicle’s Battery information such as SOC, SOH, Voltage, Current Value, Temperature of each cell is available to check in Battery Management System of ZENITH Z7
