Zenith Z7 Lite Device Diagnostic Tool With Free ( ZMA-101 Multi-Adapter + Hyundai Kia Steering Lock Emulator ) 2 Years Free Update 1 Year Warranty MKON445

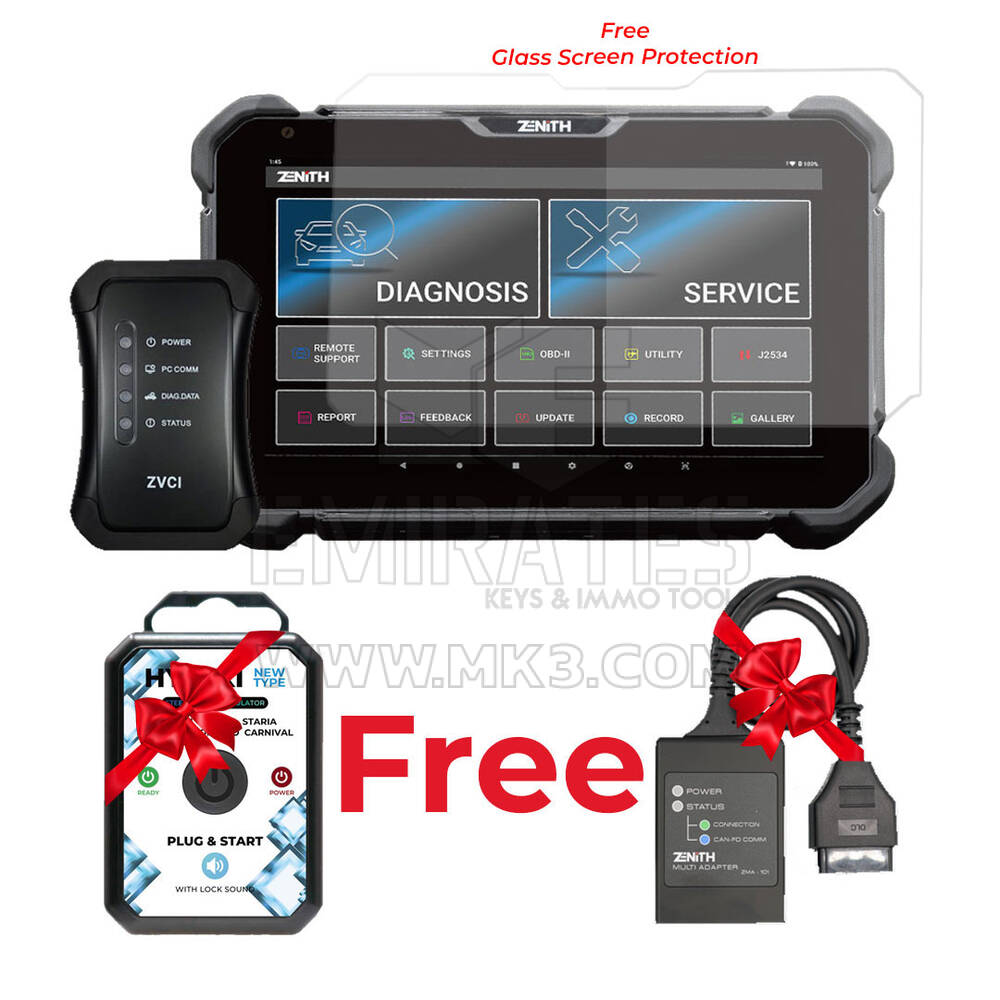

Zenith Z7 Lite Device Diagnostic Tool With Free ( ZMA-101 Multi-Adapter + Hyundai Kia Steering Lock Emulator )
Zenith Z7 Lite Device Diagnostic Tool With Free ( ZMA-101 Multi-Adapter + Hyundai Kia Steering Lock Emulator )
Zenith Z7 Lite Device Diagnostic Tool + ZMA-101 Adapter + Kia Emulator | MK3 -| thumbnail
New Bundle Zenith Z7 Lite Device Diagnostic Tool With Free ( ZMA-101 Multi-Adapter + Hyundai Kia New Type Steering Lock Emulator ) | Emirates Keys -| thumbnail
Zenith Z7 Lite Device Diagnostic Tool With Free ( ZMA-101 Multi-Adapter + Hyundai Kia Steering Lock Emulator ) - MKON445 - f-2 -| thumbnail

Zenith Z7 Lite Device Diagnostic Tool With Free ( ZMA-101 Multi-Adapter + Hyundai Kia Steering Lock Emulator )

2 Years Free Update

1 Year Warranty

Write Review
€2,148.55
Add to Wishlist
Product Code: MKON445
Categories Key Programming Tools, Diagnostic Tools, Truck
Manufacturer Zenith
In StockIn Stock
Product Specifications
Manufacturer Zenith
Condition New
Weight 13600 g

Zenith Z7 Lite Device Diagnostic Tool With Free ( ZMA-101 Multi-Adapter + Hyundai Kia Steering Lock Emulator )

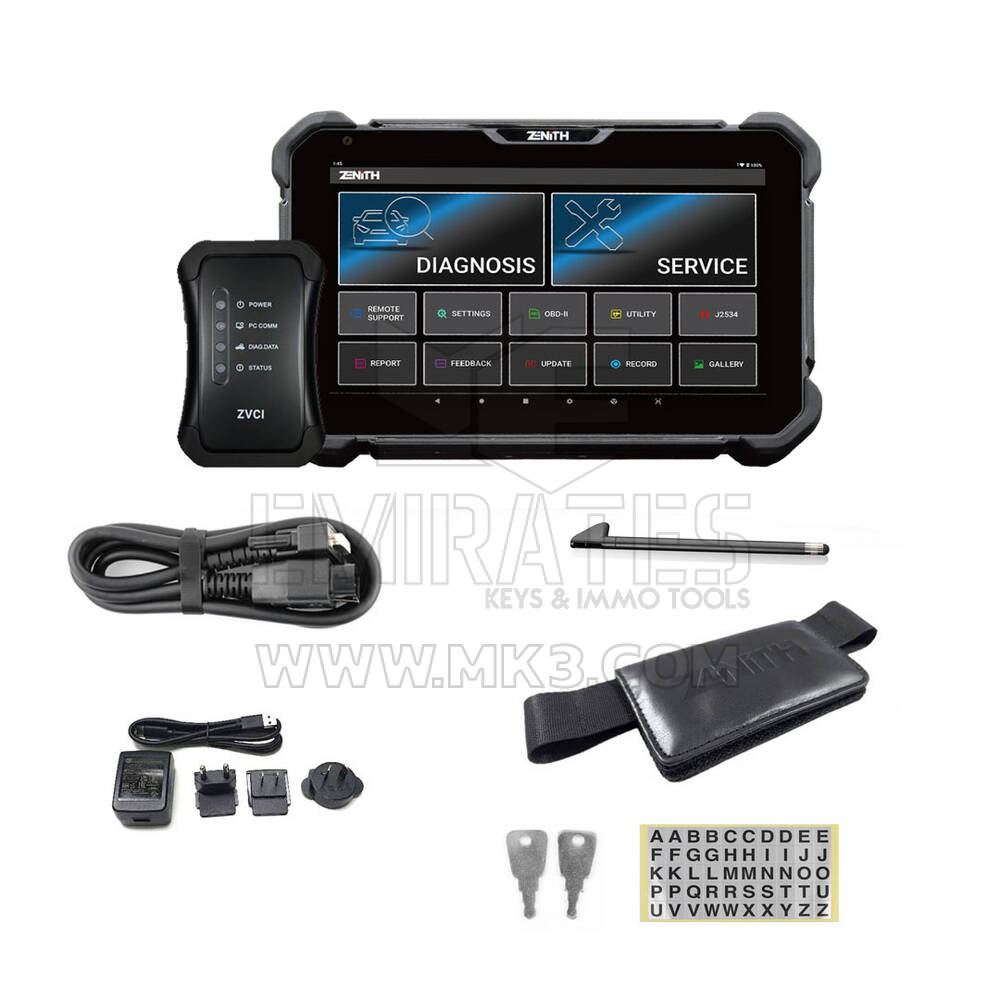

Zenith Z7 Lite Device Diagnostic Scan Tool Description:

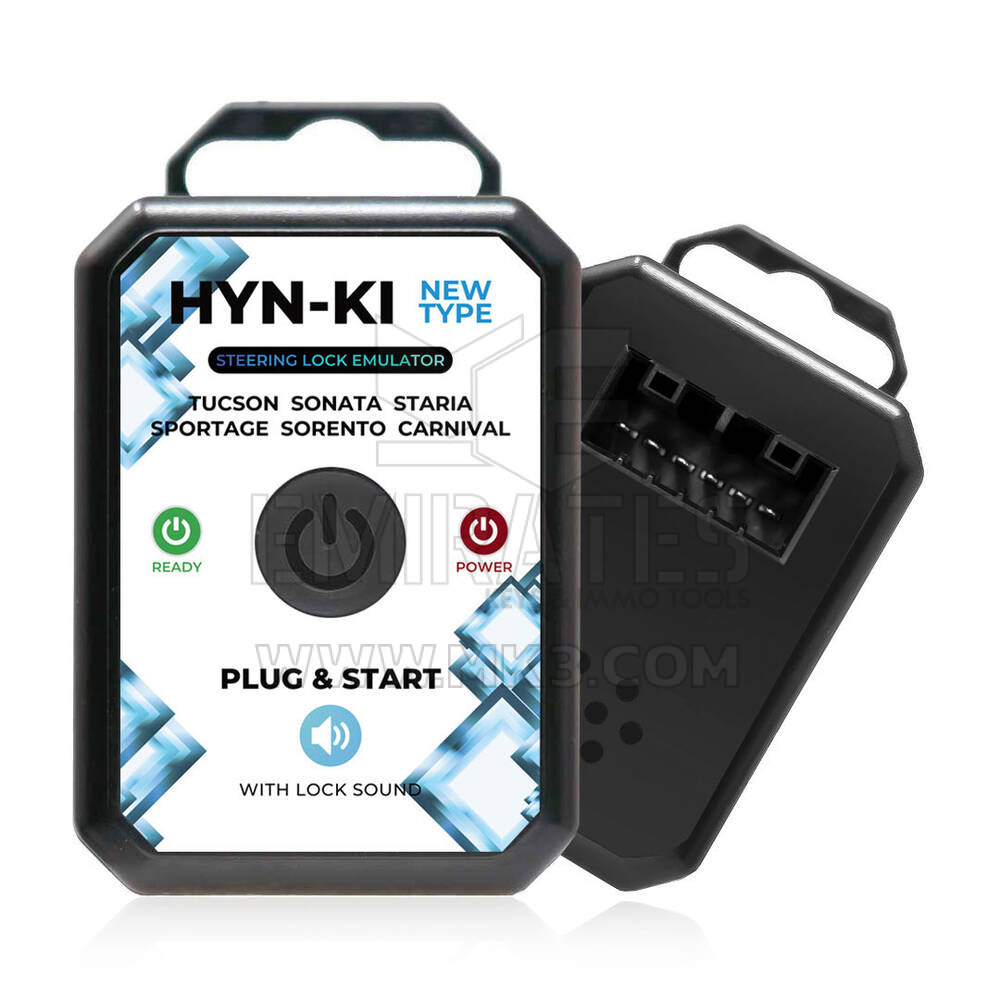

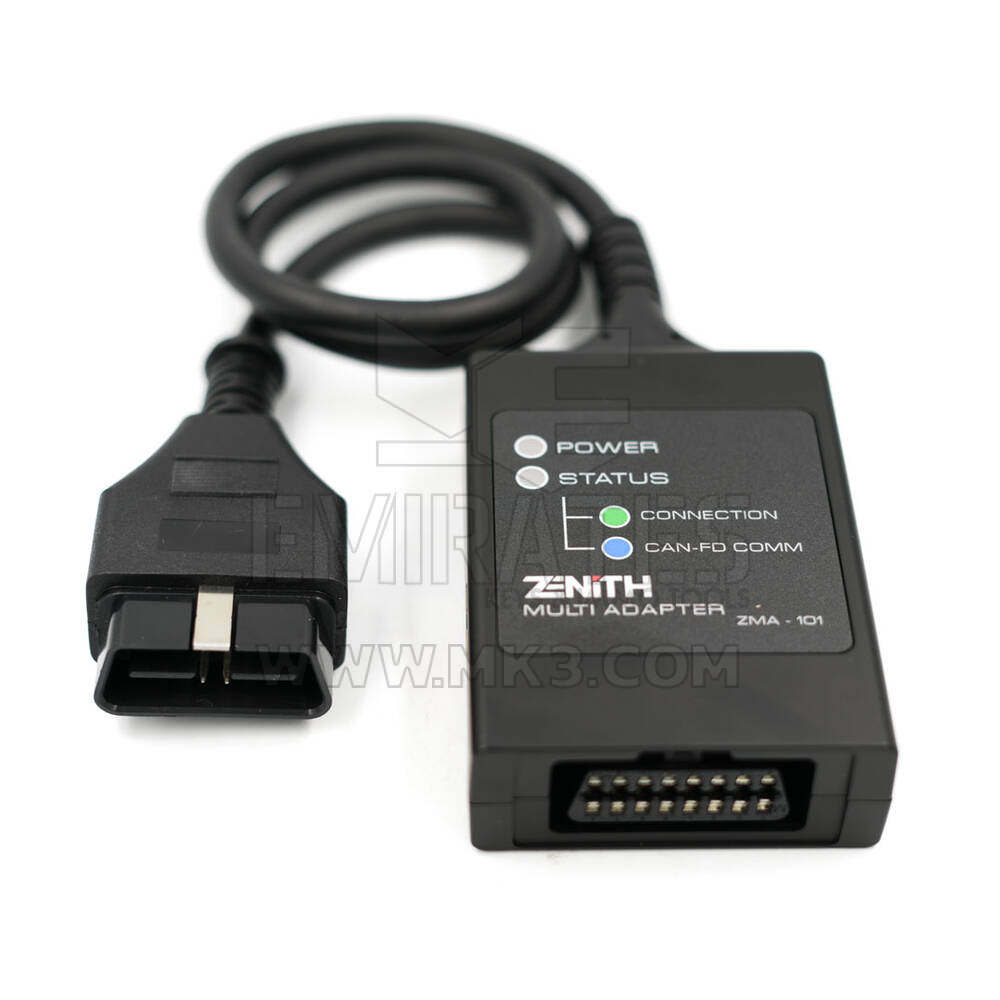

New Bundle Zenith Z7 Lite Device Diagnostic Tool With Free ( ZMA-101 Multi-Adapter + Hyundai Kia New Type Steering Lock Emulator )

Key Programming Tools Diagnostic Tools From Zenith with Product Number: MKON445



Zenith Z7 Lite Device Diagnostic Scan Tool Description:

Zenith Z7 Device Diagnostic Scan Tool Specification Configuration

Zenith Z7 Device Diagnostic Scan Tool Coverage List



New Zenith Z7 Device Diagnostic Scan Tool Legacy of Excellence with Powerful Performance and Sleek Design | Emirates Keys

Zenith Z7 Device Diagnostic Scan Tool Specs:

Category Specifications
CPU Octa Core Processor 2.2 GHz
Operating System Android 11
System Memory 4G / Internal 64G **
External Memory Micro SD Card Slot Supported (up to 256GB)
LCD 10.1 inch FHD (1920 x 1200)
Input Devices Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
Camera 8 megapixel auto-focus with LED flash
Sound Loud Speaker 1 microphone
Rechargable Battery Li-ion 3.85V, 5800mAh
Operating Voltage Main Unit(DC5V)
Sensors Ambient Light, Gyroscope, Accelerometer
Dimension About 275 x 187 x 36mm(Terminal) About 130 x 89 x 32mm(VCI)
External Port USB-B Type(Normal Type)
Network RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC







Supported Communication Protocols

CAN (High speed, Low speed, Single)
ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000
SAE-J1708, SAE-J1587
J1850(PWM/VPW)
Melco Pull-Down





  • Ultra Fast System Search
    Zenith offers ultra fast and auto system scan function that detects the VIN, model year, model name, engine type, and other necessary information that are retrieved.
    Topology Scan
    Zenith also offers ultra fast Topology scan function that scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each detected system.
    Service Function
    Time is money! Zenith offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu system.
    FCA SGW Ready
    Zenith offers Security Gateway access on the latest Fiat, Chrysler models via AutoAuth.
    24V Trucks
    Zenith supports bi-directional communications for Asian light duty to medium duty trucks with 24V system.
    Full Text Description
    No more acronyms and cutting of significant texts. Zenith offers the long-text DTC description in full screen, so you get all the information you need. Zenith also allows users to view bigger texts by zooming in and out of DTC description with two fingers.
    Search DTC
    No need to going back and forth to search the DTC on the web. Simply hit the magnifying button next to the description!
    Live Data
    We understand that sensor data is important for professionals. Zenith offers intuitively designed and extremely fast Data Analysis where user can view/compare multiple live data with freedom of choice. Not only displaying multiple data in one screen, but Zenith also allows users to search and select desired items.
    Actuation Test
    Zenith offers not just simple actuation test function. We go next step to combine live data and graphing in actuation test, so that user can check the performance of the testing component live!
    Pre & Post Diagnostic Report
    Zenith offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only user can save the reports as PDF file, also with the help of its robust network connectivity, user can print the report directly with a blue-tooth printer or send them to desired E-mail address.
    Battery Management System
    EV, HEV vehicle’s Battery information such as SOC, SOH, Voltage, Current Value, Temperature of each cell is available to check in Battery Management System of ZENITH Z7
